Machine Vision and Fixed Industrial Scanners

Enhance factory automation with high-performance fixed industrial scanners and machine vision systems for barcode reading, defect inspection, OCR, DPM decoding, and production line tracking.

Fixed Industrial Scanners Machine Vision Cameras
Industrial Machine Vision and Fixed Industrial Scanners

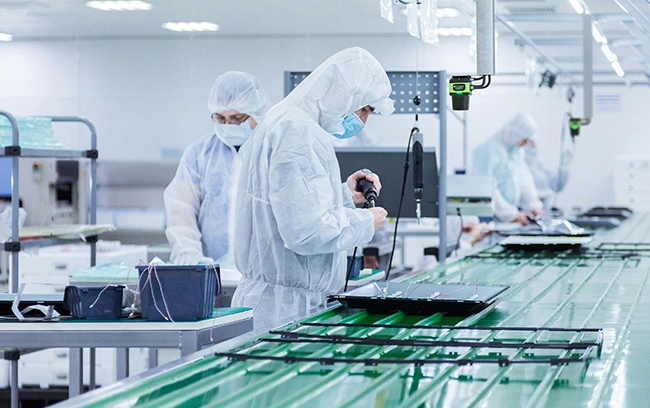

Smart Manufacturing & Automation

Advanced Industrial Vision Systems for Smart Manufacturing & Automation

Ruddersoft delivers high-performance machine vision systems and fixed industrial barcode scanners designed for modern manufacturing, logistics, warehousing, and industrial automation environments. Our industrial vision solutions enable real-time barcode reading, defect inspection, OCR verification, traceability, and production line automation with high-speed accuracy and reliability.

Designed for Industry 4.0 environments, our fixed-mount scanners and smart vision systems support seamless integration with PLCs, MES platforms, robotics, and conveyor automation systems across diverse industrial applications.

Zebra FS Series - Fixed Industrial Barcode Scanners

Industrial fixed-mount barcode scanners designed for high-speed track-and-trace in conveyor systems, automated inspection stations, warehouse automation, production lines, and distribution centres.

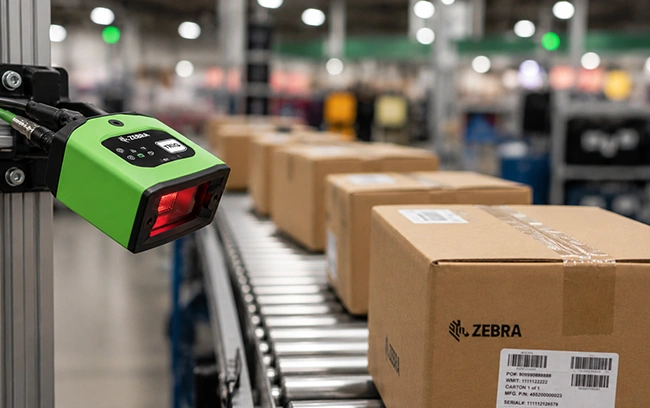

Zebra FS10 Fixed Industrial Scanner

Zebra FS10 Fixed Industrial Scanner

Compact, plug-and-play USB scanner for basic offline track-and-trace. Ideal for space-constrained applications.

  • 1.0–1.2 MP sensor
  • Auto-focus, standard range
  • Built-in red + white illumination
  • USB connectivity
  • Excellent for small workstations and simple applications

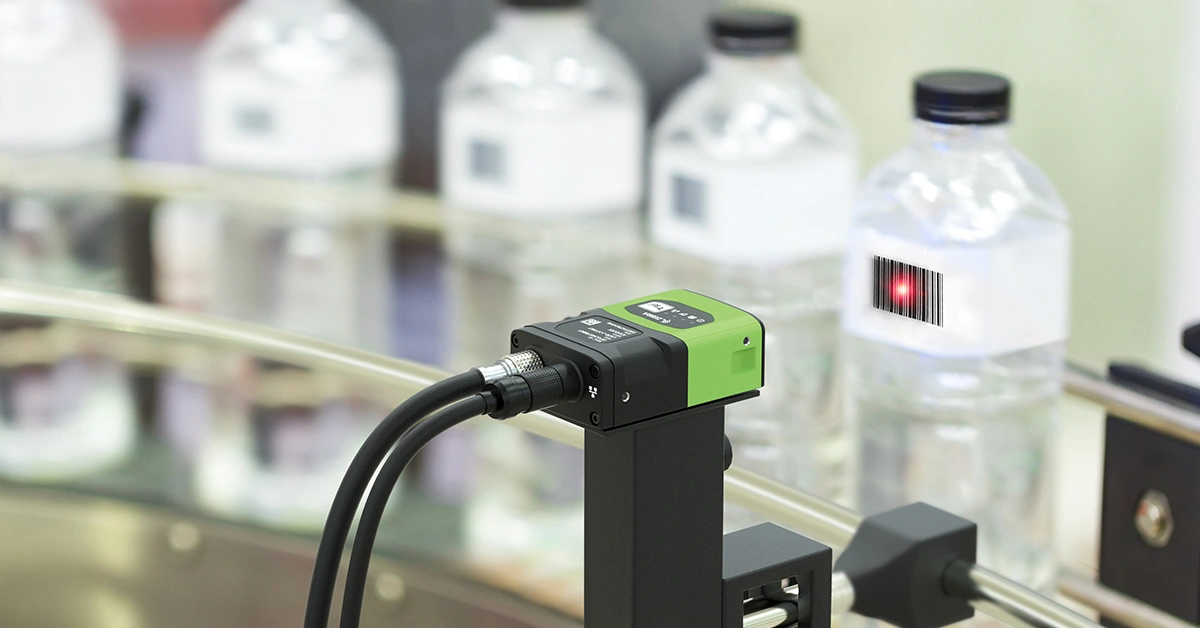

Zebra FS20 Fixed Industrial Scanner

Network-ready version of FS10. Perfect for inline scanning with PLC/host integration.

  • 1.0–1.2 MP sensor
  • Ethernet + PoE support
  • Serial and industrial protocols
  • Auto-focus with PRZM Intelligent Imaging
  • ImagePerfect technology (captures multiple exposure settings)
Enquire Now
Zebra FS20 Fixed Industrial Scanner

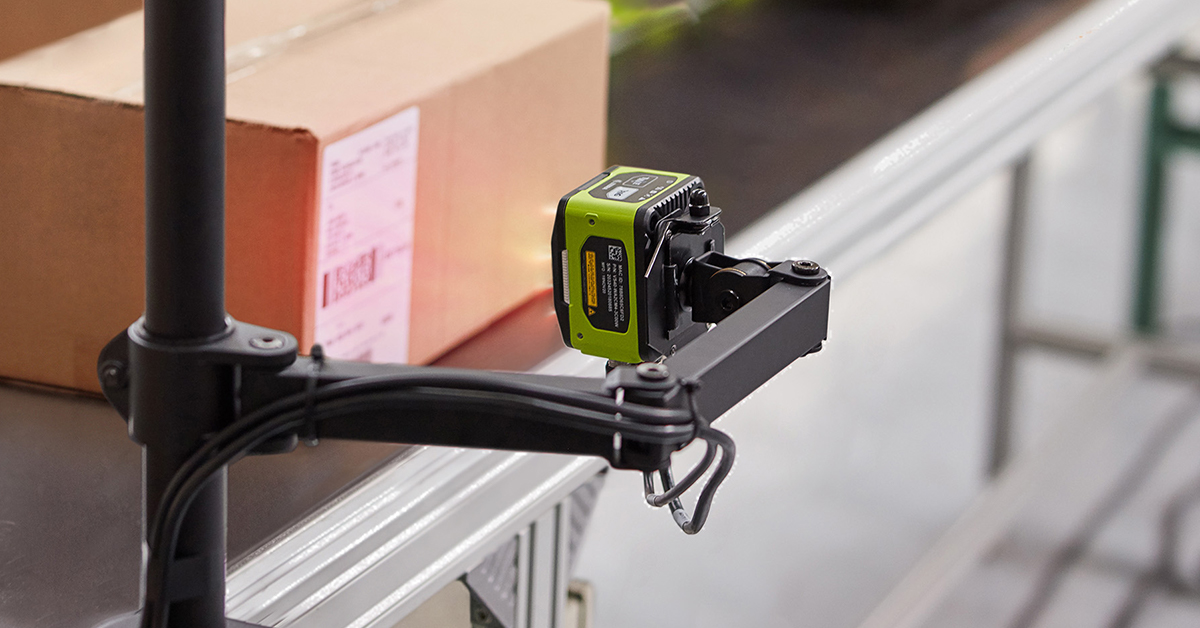

Zebra FS40 Fixed Industrial Scanner

Zebra FS40 Fixed Industrial Scanner

Comprehensive mid-range scanner for complex track-and-trace.

  • 2.3 MP or 5.1 MP sensor options
  • Liquid lens auto-focus (Standard Range or Wide Angle)
  • Multiple illumination options: Red, Blue, White, IR
  • Ethernet (PoE+), USB-C, Serial, GPIO
  • Supports DPM, OCR (with license), and ManyCode reading
  • Upgradeable to full machine vision

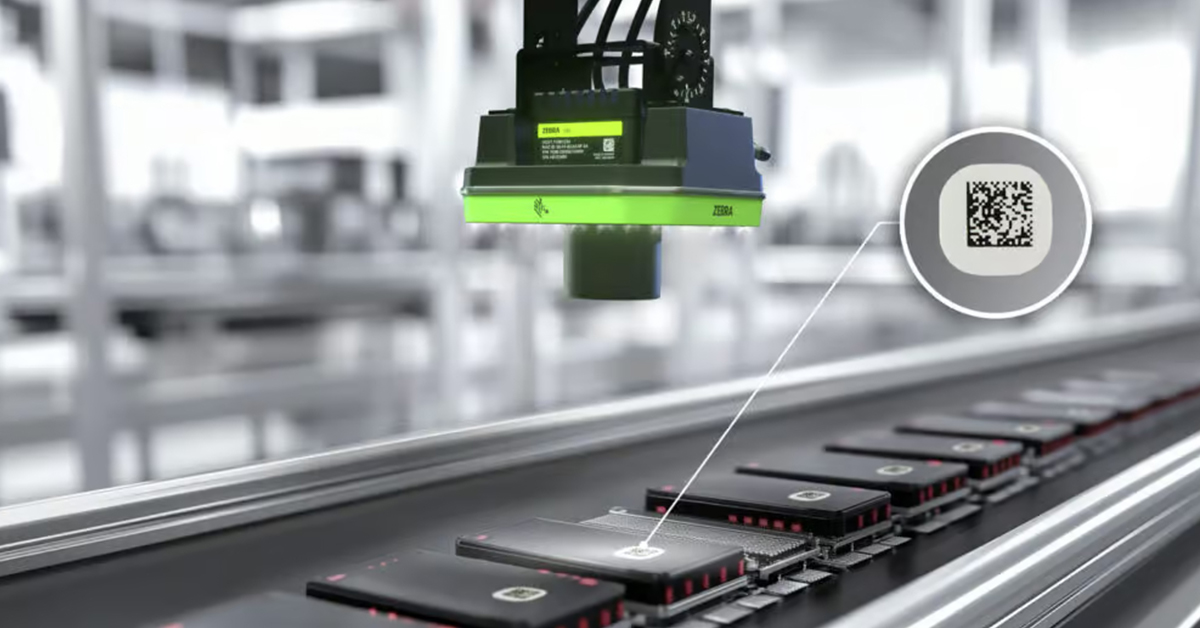

Zebra FS70 / FS80 Fixed Industrial Scanner

High-end customizable scanners for demanding applications.

  • Up to 5–16 MP sensors (FS80)
  • C-mount lens support for FS70
  • Powerful integrated lighting + external lighting control
  • Dual Ethernet (PoE), advanced I/O
  • Superior long-range and wide-area reading
  • Ideal for high-speed conveyors and large packages
Enquire Now
Zebra FS70 / FS80 Fixed Industrial Scanner

Zebra VS Series - Machine Vision Smart Cameras / Sensors

Zebra’s VS Series industrial machine vision systems use intelligent cameras, optics, lighting, and software algorithms to automate inspection, identification, measurement, and quality control processes.

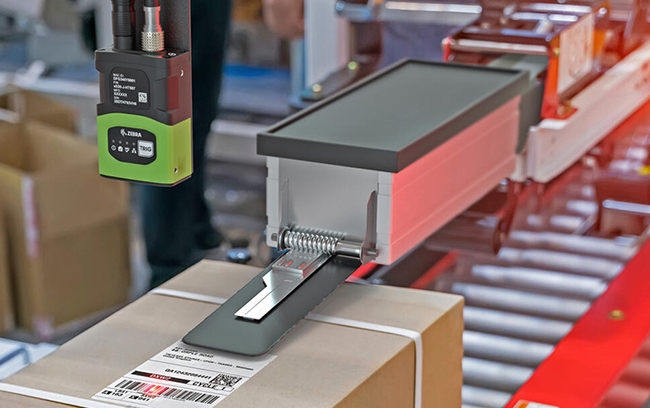

VS20 Machine Vision System

VS20 Machine Vision System

Deploy fast, reliable basic quality inspections on your production line. The VS20 is the perfect entry-level smart sensor for simple yet critical vision tasks in space-constrained environments.

  • 1.2 MP monochrome global shutter sensor with 60 fps capture
  • Liquid lens auto-focus with integrated Red/White LED illumination
  • PoE, M12 Ethernet, GPIO, and RS-232 connectivity
  • 2 opto-isolated inputs and outputs
  • Compact IP65-rated industrial housing
  • Supports barcode decoding, OCR, pattern matching, and presence detection
  • Ideal for label verification, sorting, and track & trace applications

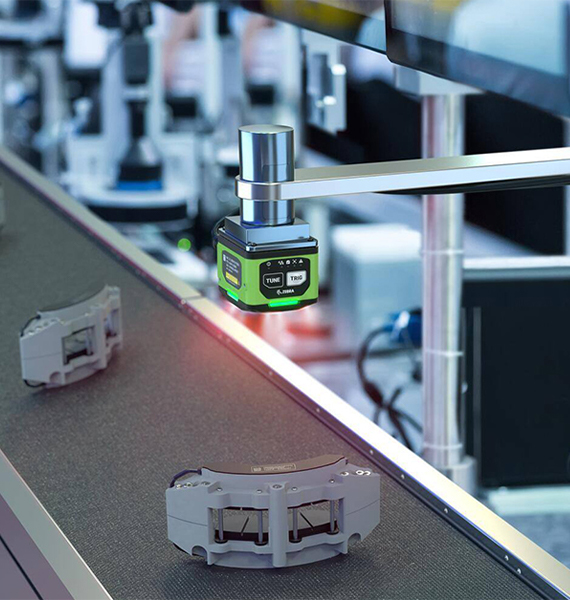

VS40 Machine Vision System

Handle a wide range of complex inspection applications with unmatched flexibility. The VS40 delivers comprehensive machine vision performance in a compact, industrial-grade package.

  • 2.3 MP or 5.1 MP monochrome sensor with up to 60 fps capture
  • ImagePerfect+ captures up to 16 optimized images per trigger
  • Liquid lens auto-focus with standard or wide-angle optics
  • Replaceable Red, Blue, White, and IR LED illumination
  • Dual Ethernet, USB 3.0 Type-C, GPIO, and RS-232 connectivity
  • Supports Ethernet/IP, PROFINET, and Modbus TCP protocols
  • Rugged IP65/IP67 industrial housing
  • Advanced tools for OCR, defect detection, measurements, and pattern matching
  • Ideal for packaging inspection, assembly validation, and multi-code reading
Enquire Now
VS40 Machine Vision System

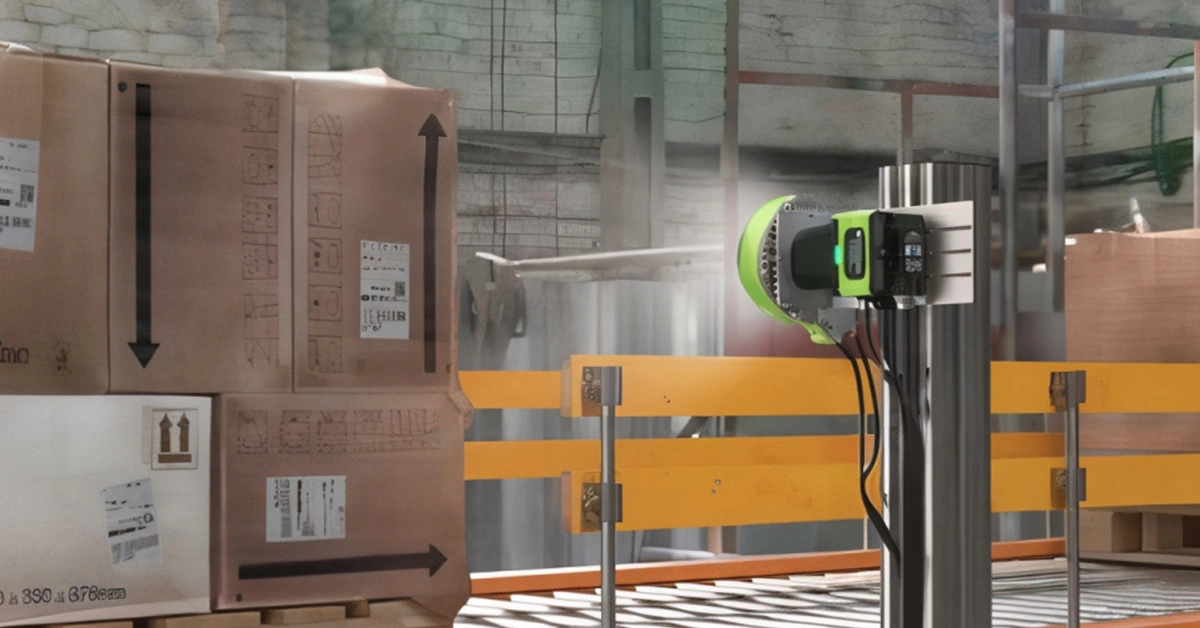

Zebra VS70 Fully Customizable High-Performance Vision System

Solve the most demanding and complex vision challenges with complete customization. The VS70 is built for advanced applications that require maximum flexibility in optics, lighting, and resolution.

  • 2.3 MP or 5.1 MP monochrome/color CMOS sensor options
  • Integrated and external Red, White, Blue, and IR lighting control
  • Dual Ethernet, USB 3.0 Type-C, GPIO, and external lighting interfaces
  • ImagePerfect+ multi-exposure imaging for enhanced surface inspection
  • Advanced vision tools for gauging, defect detection, and Deep Learning OCR
  • High-performance onboard processing for real-time inspections
  • Ideal for automotive, PCB inspection, precision measurement, and DPM/OCR applications
Enquire Now
Zebra VS70 Fully Customizable High-Performance Vision System

Key Industrial Applications

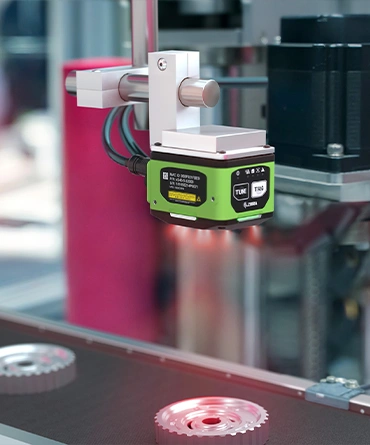

Automotive Manufacturing

Automotive Manufacturing

  • Component verification
  • Weld inspection
  • Part traceability
  • Robotic alignment

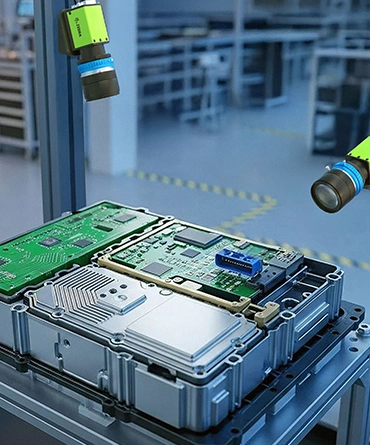

Electronics & PCB Inspection

Electronics & PCB Inspection

  • Solder inspection
  • Component presence validation
  • PCB code reading
  • Micro-defect detection

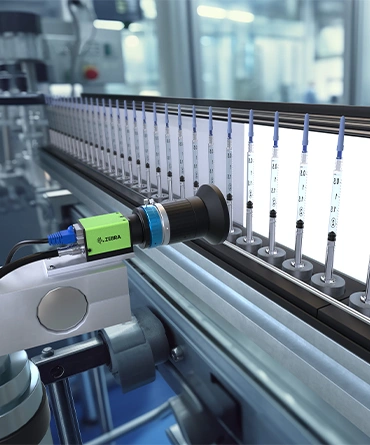

Pharmaceutical Industry

Pharmaceutical Industry

  • Batch code verification
  • Serialization validation
  • Label inspection
  • Packaging quality checks

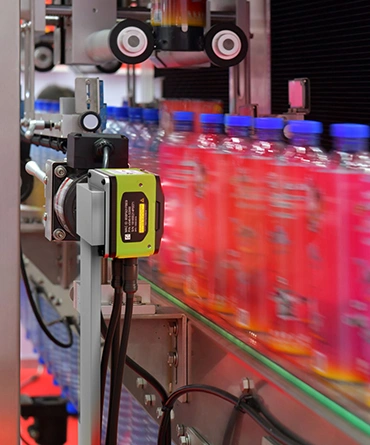

FMCG & Packaging

FMCG & Packaging

  • Label accuracy verification
  • Seal inspection
  • Carton identification
  • Packaging completeness checks
Warehousing & Logistics

Warehousing & Logistics

  • Automated package tracking
  • Barcode tunnel systems
  • Dimension verification
  • Parcel routing automation

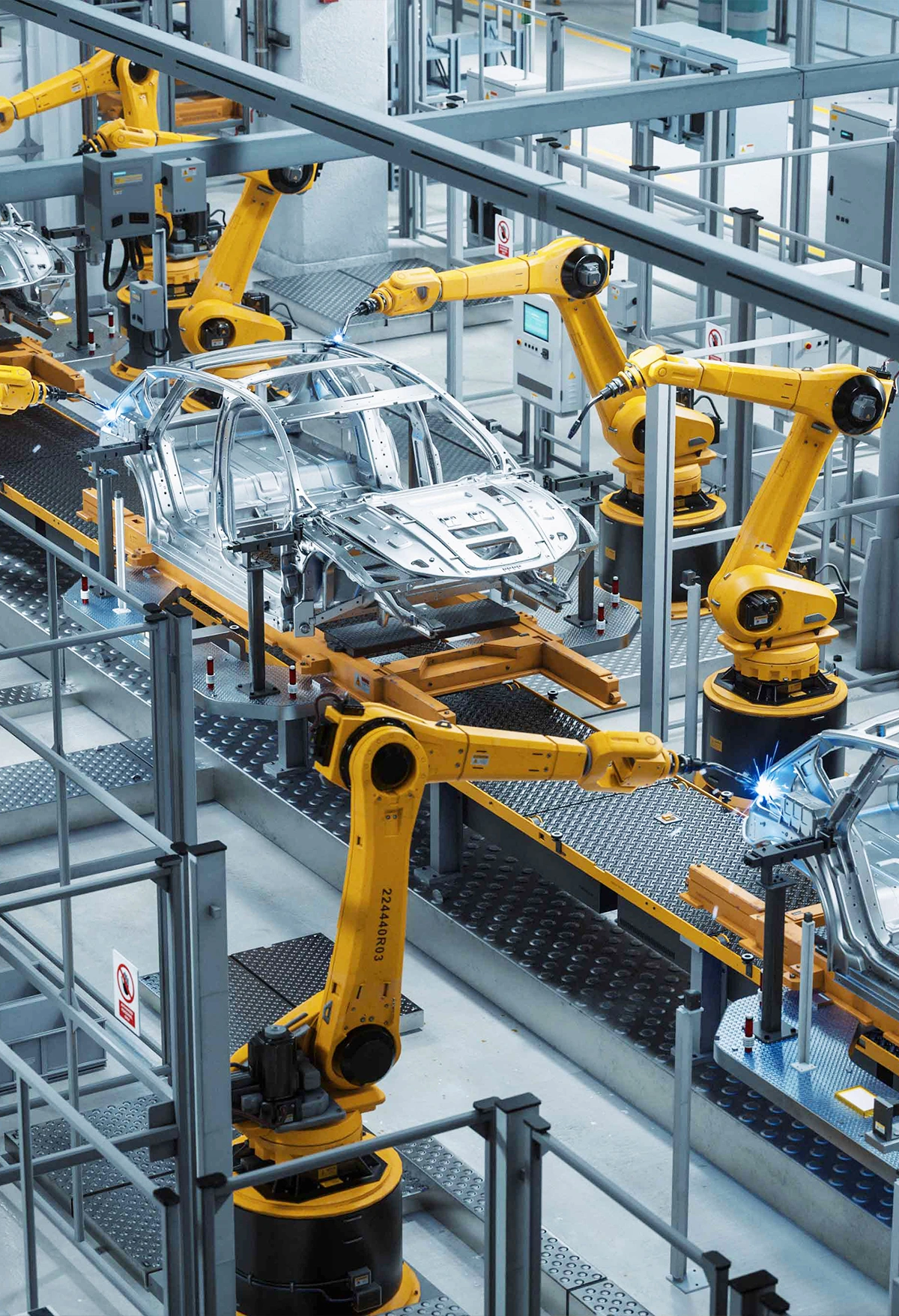

Seamless Factory Automation Integration

Ruddersoft machine vision solutions integrate effortlessly into modern industrial automation ecosystems for real-time communication, traceability, and smart manufacturing workflows.

Seamless Factory Automation Integration

Supported Integration Platforms

  • PLC Systems
  • MES Software
  • SCADA Platforms
  • Industrial Robots
  • Conveyor Systems
  • ERP Traceability
  • Warehouse Systems
  • Production Monitoring

Industrial Communication Protocols

  • Ethernet/IP
  • PROFINET
  • Modbus TCP
  • OPC UA
  • TCP/IP
  • Serial Interfaces
  • Digital I/O Triggering
  • Real-time Data Exchange

Speak with our automation experts today to find the perfect machine vision or fixed scanning solution for your facility.
